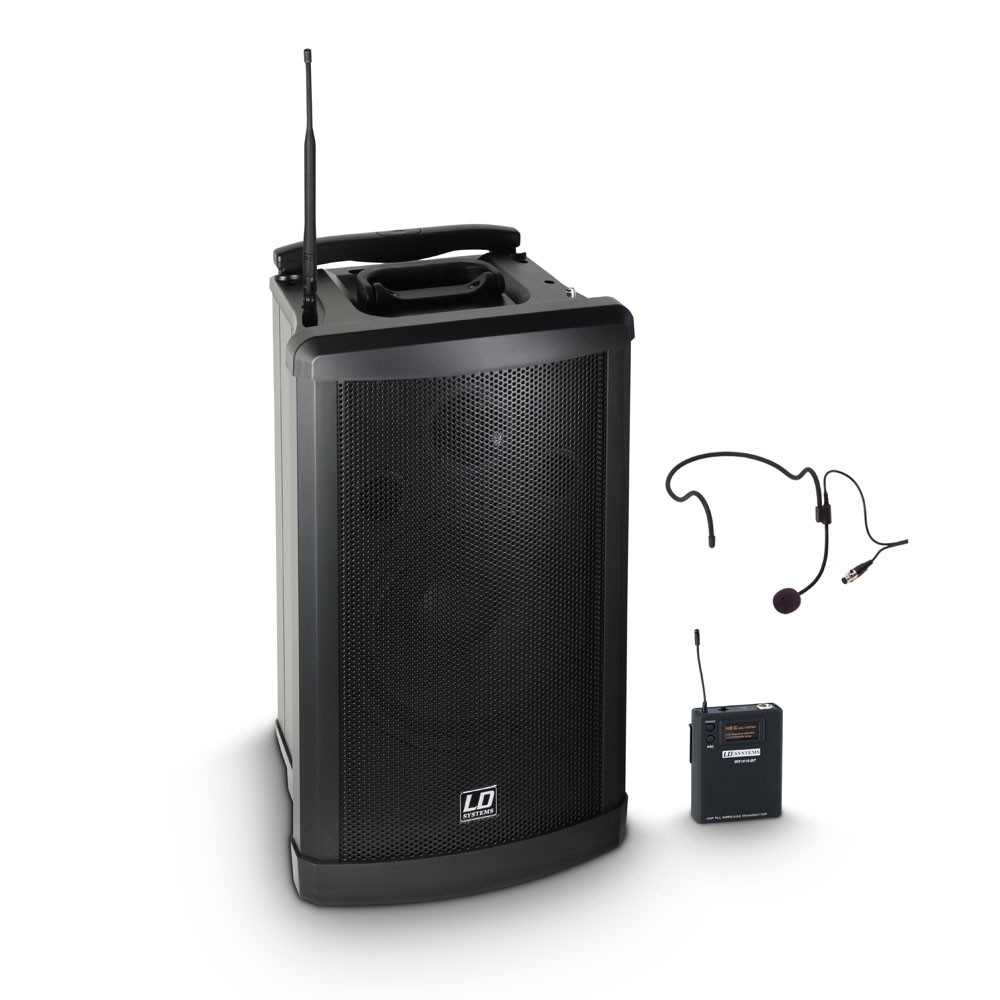

LD Systems Roadman 102 HS

Περιγραφή

Product type: Battery-powered PA speaker
Type: Set with pocket transmitter and headset microphone
Low/mid driver dimensions: 10 ”
Woofer Size: 254 mm
Woofer magnet: Ferrite
Woofer brand: Custom-made
HF driver dimensions: 1 ”
HF Driver Size: 25.4 mm
HF driver magnet: Ferrite
HF driver brand: Custom-made
Amplifier: Class D
RMS: 80 W
Peak power: 320 W
Frequency response: 70 – 16.000 Hz
SPL (1W/1m): 95 dB
Max. SPL: 115 dB
Protection circuits: short circuit

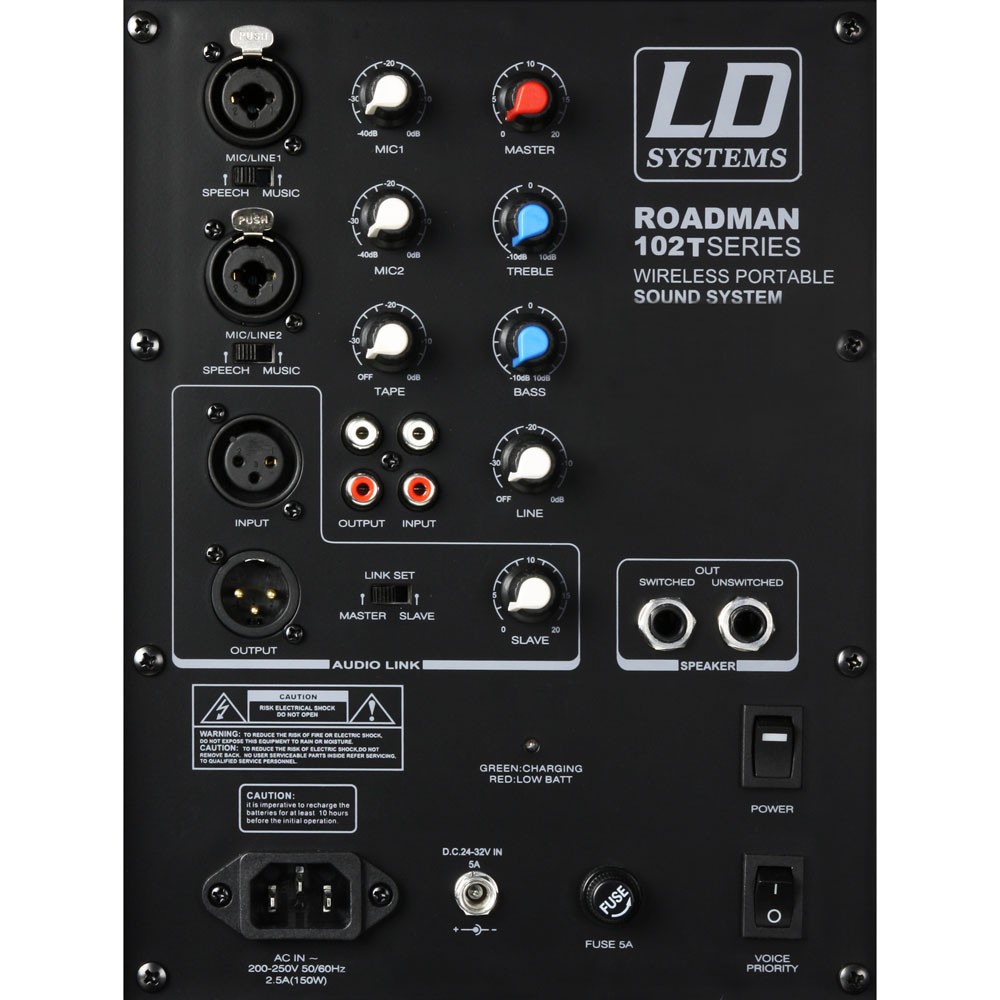

Controls: Audio-link set (master / slave) , Audio-link slave volume , Line Gain , Master , Power , Speech / music switch (Mic / Line 1) , Speech / music switch (Mic / Line 2) , Tape volume , Treble , Voice priority on / off , Volume Mic 1 , Volume Mic 2
Indicators: Charge/battery status , Power

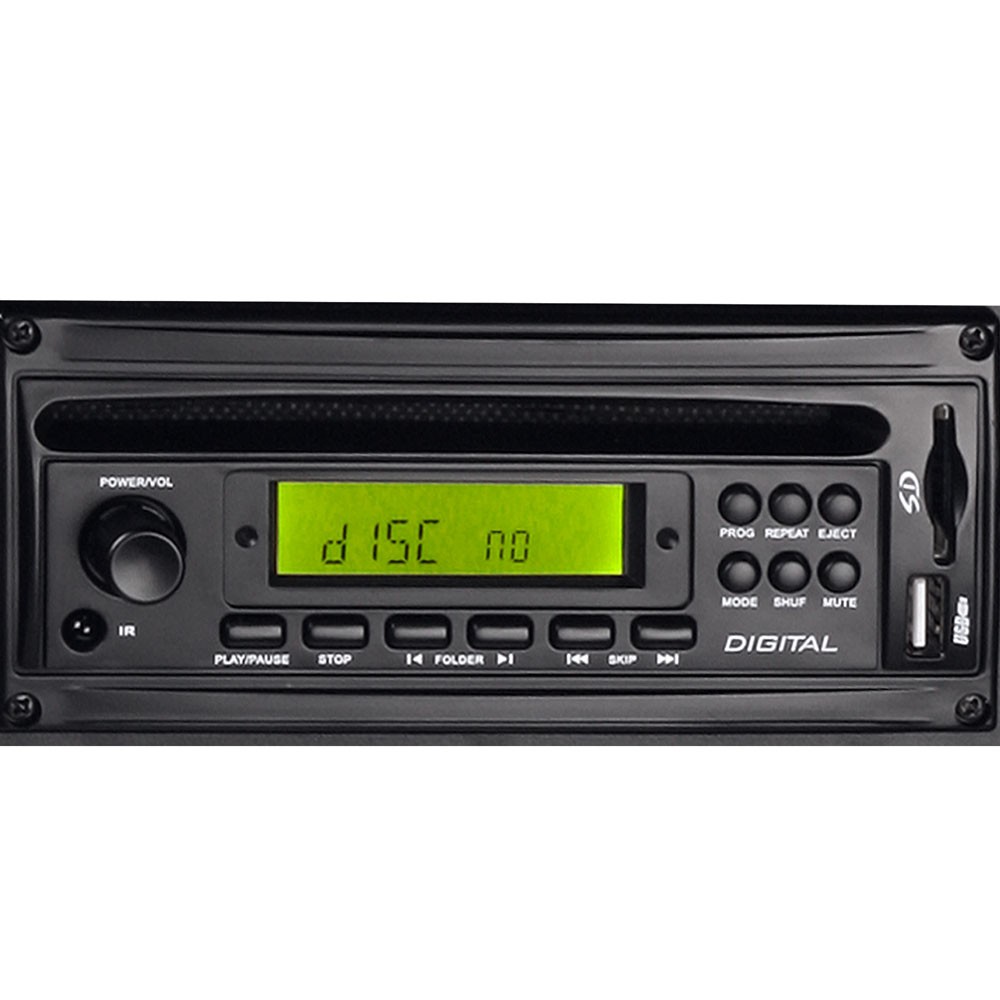

Media player: Supported media
Audio-CD , CD-R , CD-R/W , SD Card , USB stick
Supported formats
Audio-CD , MP3 file , MP3-CD , WMA file , WMA-CD
Media player controls
CD ejector , Folder – , Folder + , Mode (CD / SD / USB) , mute , Next Track , Play / Pause , Power / Volume , Previous Track , Program , Repeat , Shuffle , Stop
Media player display elements
Lighted multifunctional LC display
Line inputs: 3
Line input connectors: 2 x RCA , Audio-link input XLR, female
Mic inputs: 2
Mic inputs: 6.3 mm Jack , XLR
Line outputs: 3
Line output connectors: 2 x RCA , Audio-link output XLR, male
Loudspeaker outputs: Speaker Out Switched , Speaker Out Unswitched
Transmission frequency range
863.100 – 864.100 MHz
Speaker output connections: 6.3 mm Jack
Operating voltage: transformer
Operating voltage: 200 V AC – 250 V AC , 24 V DC – 32 V DC (5A)
Rechargeable batteries: 2 x 12 V / 4.5 AH
Cabinet material: aluminium , plastic
Cabinet construction: vented
Width: 355 mm
Height: 610 mm
Depth: 315 mm

Other features
additional radio receiver (LDRM102R) available optionally , Audio-link function , Stand mount 36 mm , Transport bag available optionally , Transport casters , transport handle , Trolley handle
